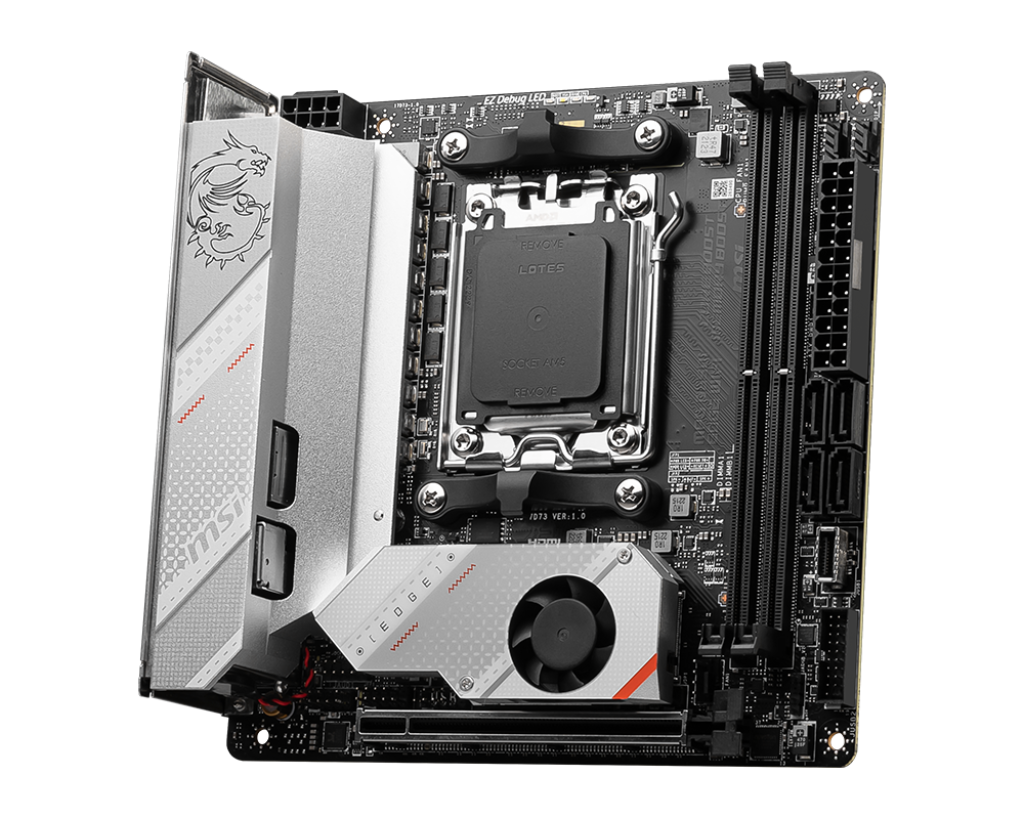

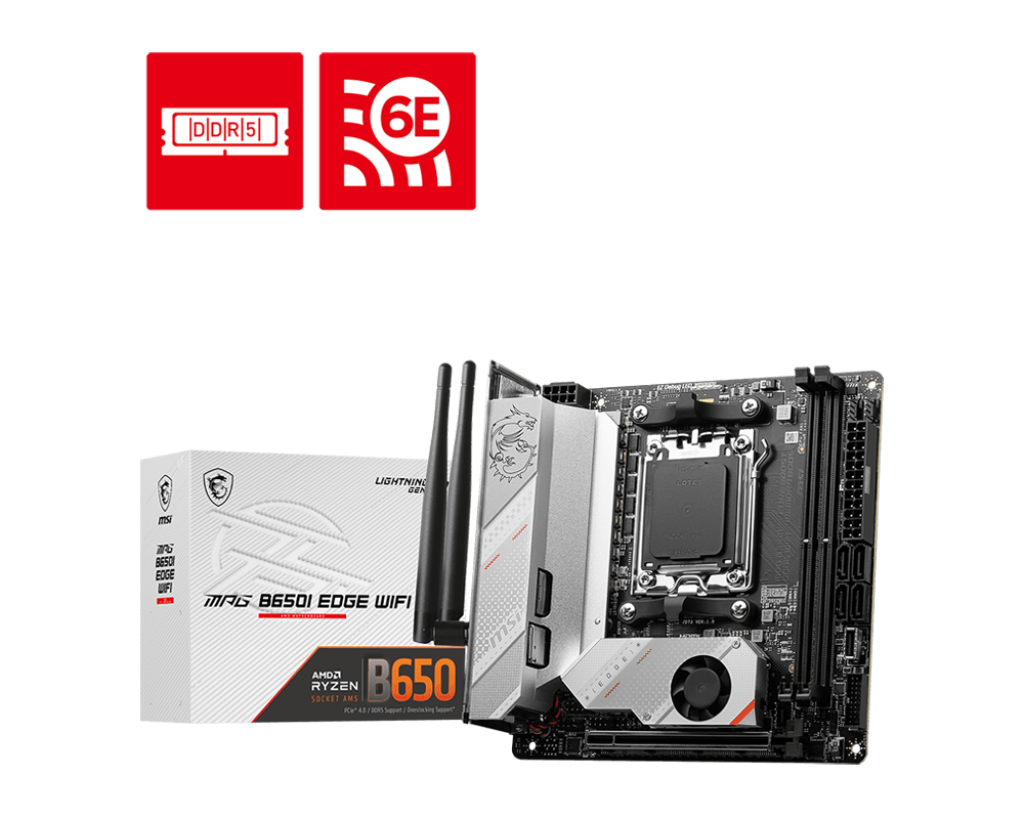

MSI MPG B650I EDGE WIFI Gaming Motherboard - AM5 - Mini ITX - Ryzen 7 Processor Supported - 64 GB DDR5 RAM

Chipset

• Chipset: AMD B650

CPU

• Supports: AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
• Socket: AM5

Memory

• Slots: 2x DDR5
• Maximum Memory Capacity: 128 GB
• Memory Support:
• DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
• Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• Supports:
• Dual-Channel mode
• Non-ECC, un-buffered memory
• AMD EXPO™

Onboard Graphics

• Ports:
• 1x HDMI™
• Supports HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*
• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slots

• PCI Express Slots:
• 1x PCI-E x16 slot
• Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4 (For Ryzen™ 5 8500G processor)
• PCI_E1 Gen: PCIe 4.0 supports up to x16 (From CPU)

Audio

• Codec: Realtek® ALC4080 Codec
• Channels: 7.1-Channel USB High-Performance Audio
• Playback Support: Up to 32-Bit/384 kHz on the front panel

Storage

• M.2 Slots:
• 2x M.2
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices
• SATA Ports: 4x SATA 6G

RAID

• Supports:
• RAID 0, RAID 1, and RAID 10 for SATA storage devices
• RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

• Front USB Ports:
• 2x USB 2.0
• 2x USB 5Gbps Type A
• 1x USB 10Gbps Type C

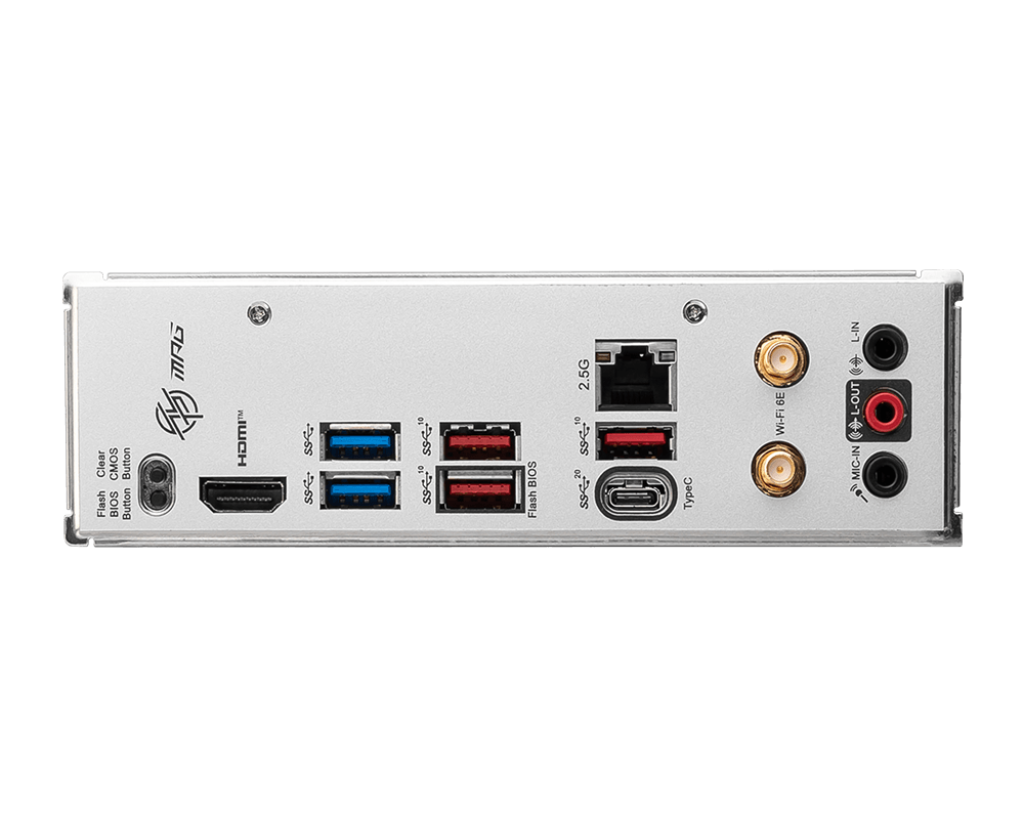

• Rear USB Ports:
• 2x USB 5Gbps Type A
• 3x USB 10Gbps Type A
• 1x USB 20Gbps Type C

LAN

• Controller: Realtek® RTL8125BG
• Speed: 2.5Gbps LAN

Wireless LAN & Bluetooth

• Wireless: AMD Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX
• Supports 20MHz, 40MHz, 80MHz, 160MHz bandwidth in 2.4GHz/5GHz or 6GHz* bands
• Supports 802.11 a/b/g/n/ac/ax
• *Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
• Bluetooth: Supports Bluetooth® 5.3**
• **Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Internal IO

• Connectors:
• 1x Power Connector (ATX_PWR)
• 1x Power Connector (CPU_PWR)
• 1x CPU Fan
• 1x Pump Fan
• 1x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Addressable V2 RGB LED connector (JARGB_V2)
• 1x TPM pin header (Support TPM 2.0)
• 2x USB 2.0 ports
• 2x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C port

LED Features

• Debug LEDs: 4x EZ Debug LED
